4 Analysing tracks with movement

In this tutorial, we will introduce the movement package and walk through parts of its documentation.

You will be given a set of exercises to complete—using movement to analyse the pose tracks you’ve generated in Chapter 3 or any other tracking data you may have access to.

Using the right environment

If you are following along this chapter on your own computer, make sure to run all code snippets with the animals-in-motion-env environment activated (see prerequisites A.3.3). This also applies to launching the movement graphical user interface (Section 4.4) and running movement examples as Jupyter notebooks (Section 4.5 and Section 4.6).

4.1 What is movement?

In chapters 1 and 2 we saw how the rise of deep learning-based markerless motion tracking tools is transforming the study of animal behaviour.

In Chapter 3 we dove deeper into SLEAP, a popular package for pose estimation and tracking. We saw how SLEAP and similar tools—like DeepLabCut and LightningPose—detect the positions of user-defined keypoints in video frames, group the keypoints into poses, and connect their identities across time into sequential collections we call pose tracks.

The extraction of pose tracks is often just the beginning of the analysis. Researchers use these tracks to investigate various aspects of animal behaviour, such as kinematics, spatial navigation, social interactions, etc. Typically, these analyses involve custom, project-specific scripts that are hard to reuse across different projects and are rarely maintained after the project’s conclusion.

In response to these challenges, we saw the need for a versatile and easy-to-use toolbox that is compatible with a range of ML-based motion tracking frameworks and supports interactive data exploration and analysis. That’s where movement comes in. We started building in early 2023 to answer the question: what can I do now with these tracks?

movement’s mission

movementaims to facilitate the study of animal behaviour by providing a consistent, modular interface for analysing motion tracks, enabling steps such as data cleaning, visualisation, and motion quantification.

See movement’s mission and scope statement for more details.

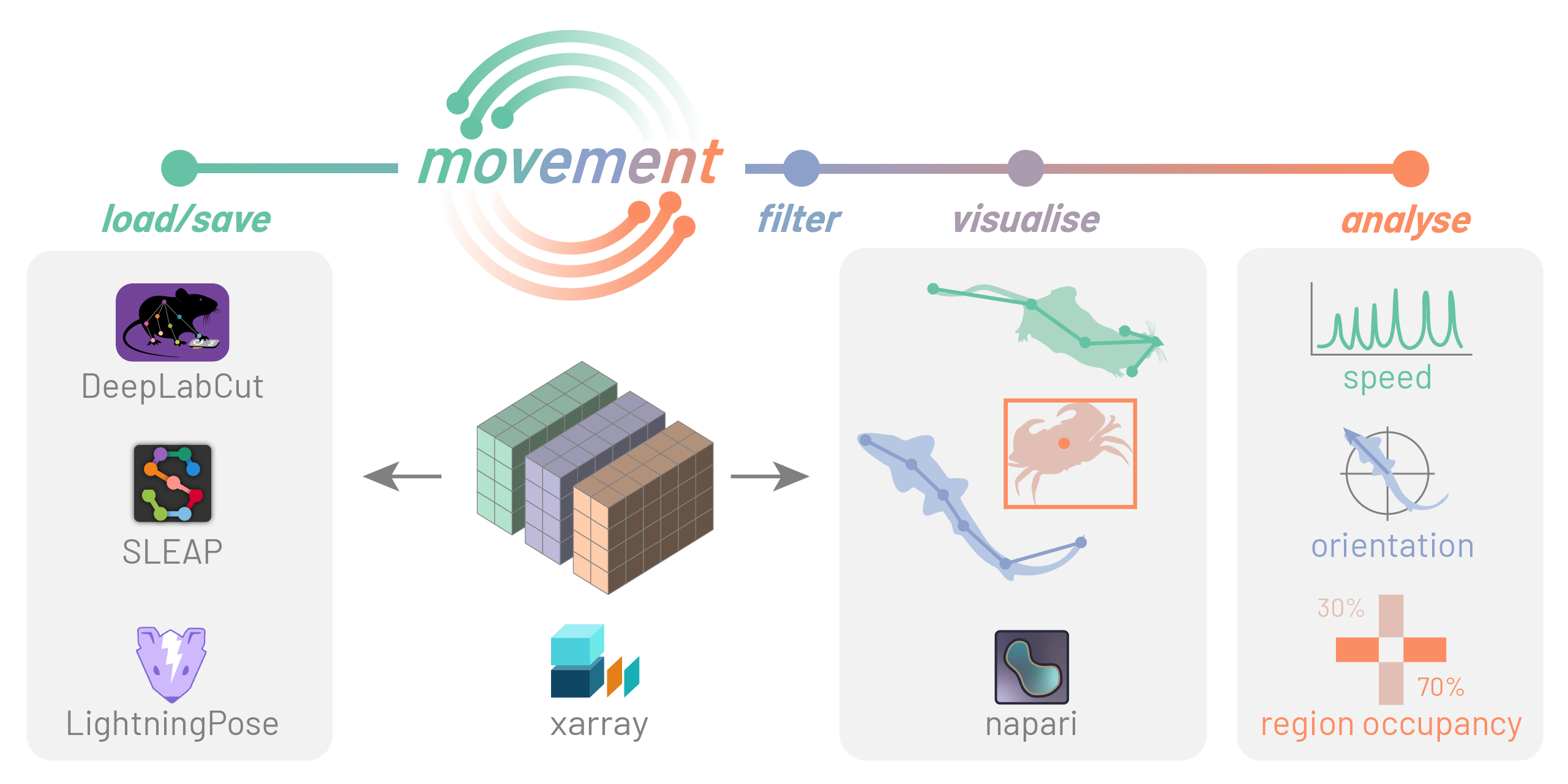

Figure 4.1: Overview of the `movement` package

4.2 A unified interface for motion tracks

movement aims to support all popular animal tracking frameworks and file formats, in 2D and 3D, tracking single or multiple animals of any species.

To achieve this level of versatility, we had to identify what’s common across the outputs of motion tracking tools and how we can represent them in a standardised way.

What we came up with takes the form of collections of multi-dimensional arrays—an xarray.Dataset object. Each array within a dataset is an xarray.DataArray object holding different aspects of the collected data (position, time, confidence scores…). You can think of an xarray.DataArray as a multi-dimensional numpy.ndarray with pandas-style indexing and labelling.

This may sound complicated but fear not, we’ll build some understanding by exploring some example datasets that are included in the movement package.

from movement import sample_data

Downloading data from 'https://gin.g-node.org/neuroinformatics/movement-test-data/raw/master/metadata.yaml' to file '/home/runner/.movement/data/temp_metadata.yaml'.
SHA256 hash of downloaded file: ab9c9c95a3f8366583e2cdb9c84610c62bd0bb0c6cbbcbbdc6a3390b6108623f
Use this value as the 'known_hash' argument of 'pooch.retrieve' to ensure that the file hasn't changed if it is downloaded again in the future.

4.2.1 Poses datasets

First, let’s see how movement represents pose tracks, like the ones we get with SLEAP.

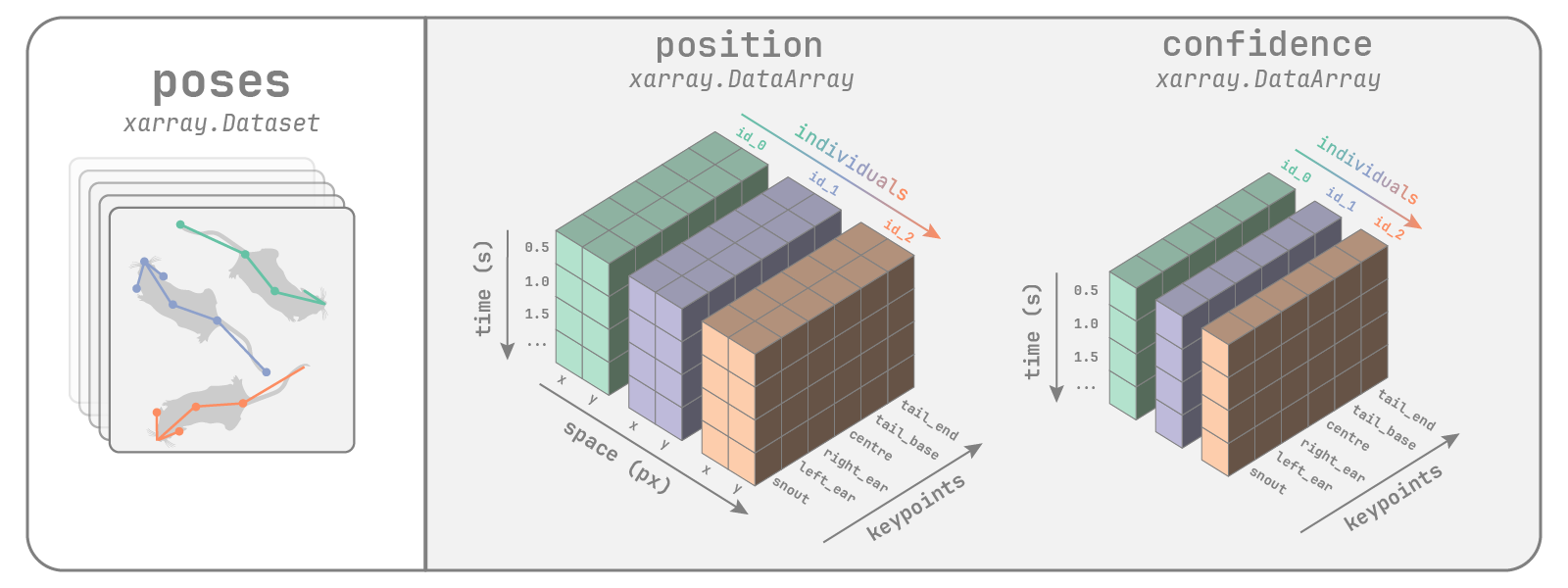

Figure 4.2: The structure of a `movement` poses dataset

Let’s load an example dataset and explore its contents.

poses_ds = sample_data.fetch_dataset("SLEAP_two-mice_octagon.analysis.h5")
poses_ds

4.2.2 Bounding boxes datasets

movement also supports datasets that consist of bounding boxes, like the ones we would get if we performed object detection on a video, followed by tracking identities across time.

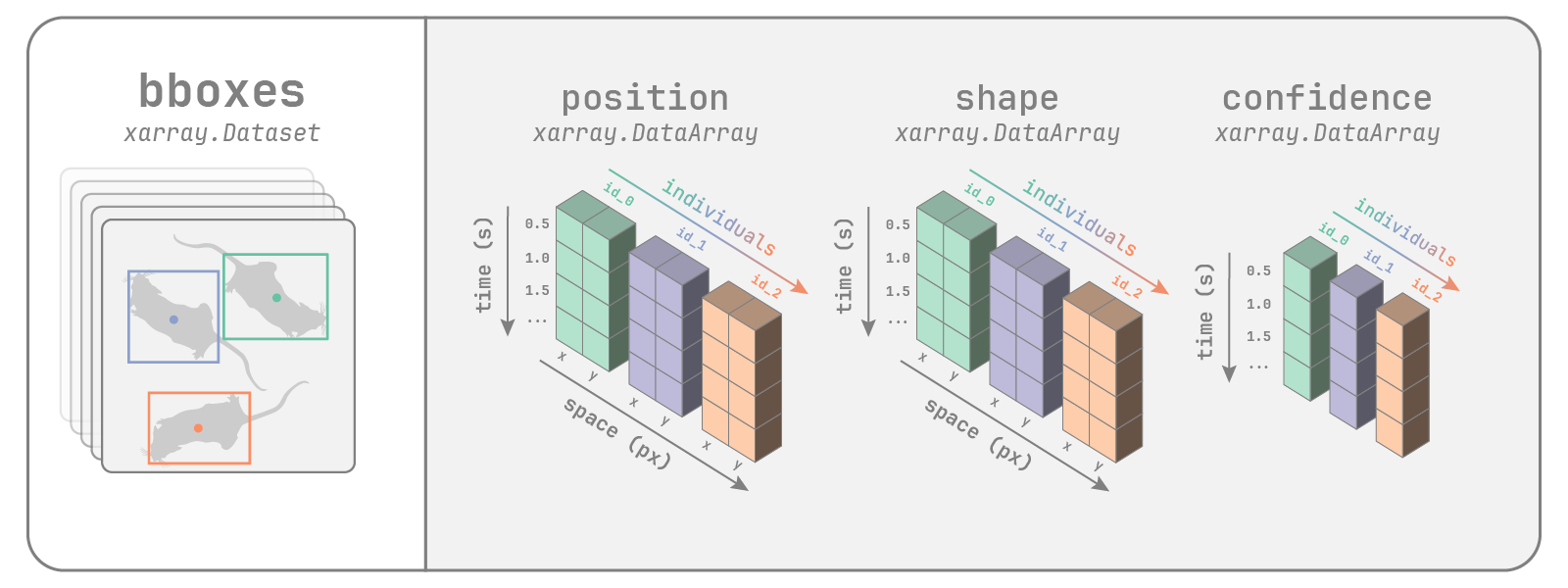

Figure 4.3: The structure of a `movement` bounding boxes dataset

bboxes_ds = sample_data.fetch_dataset(
    "VIA_single-crab_MOCA-crab-1_linear-interp.csv"
)

bboxes_ds

Discuss

What are some limitations of movement’s approach? What kinds of data cannot be accommodated?
Can you think of alternative ways of representing these data?

See the documentation on movement datasets for more details on movement data structures.

4.2.3 Working with xarray objects

Since movement represents motion tracking data as xarray objects, we can use all of xarray’s intuitive interface and rich built-in functionalities for data manipulation and analysis.

Accessing data variables and attributes (metadata) is straightforward:

print(f"Source software: {poses_ds.source_software}")
print(f"Frames per second: {poses_ds.fps}")

poses_ds.position

Source software: SLEAP
Frames per second: 50.0

We can select a subset of data along any dimension in a variety of ways: by integer index (order) or coordinate label.

# First individual, first time point
poses_ds.position.isel(individuals=0, time=0)

# 0-10 seconds, two specific keypoints
poses_ds.position.sel(time=slice(0, 10), keypoints=["EarLeft", "EarRight"])

We can also do all sorts of computations on the data, along any dimension.

# Each point's median confidence score across time
poses_ds.confidence.median(dim="time")

# Take the block mean for every 10 frames.
poses_ds.position.coarsen(time=10, boundary="trim").mean()

xarray also provides a rich set of built-in plotting methods for visualising the data.

from matplotlib import pyplot as plt

tail_base_pos = poses_ds.sel(keypoints="TailBase").position
tail_base_pos.plot.line(
    x="time", row="individuals", hue="space", aspect=2, size=2.5
)
plt.show()

Figure 4.4: The x,y spatial coordinates of the TailBase keypoint across time

You can also combine those with matplotlib figures.

colors = plt.cm.tab10.colors

fig, ax = plt.subplots()
for kp, color in zip(poses_ds.keypoints, colors):
    data = poses_ds.confidence.sel(keypoints=kp)
    data.plot.hist(
        bins=50, histtype="step", density=True, ax=ax, color=color, label=kp
    )
ax.set_ylabel("Density")
ax.set_title("Confidence histograms per keypoint")
plt.legend()
plt.show()

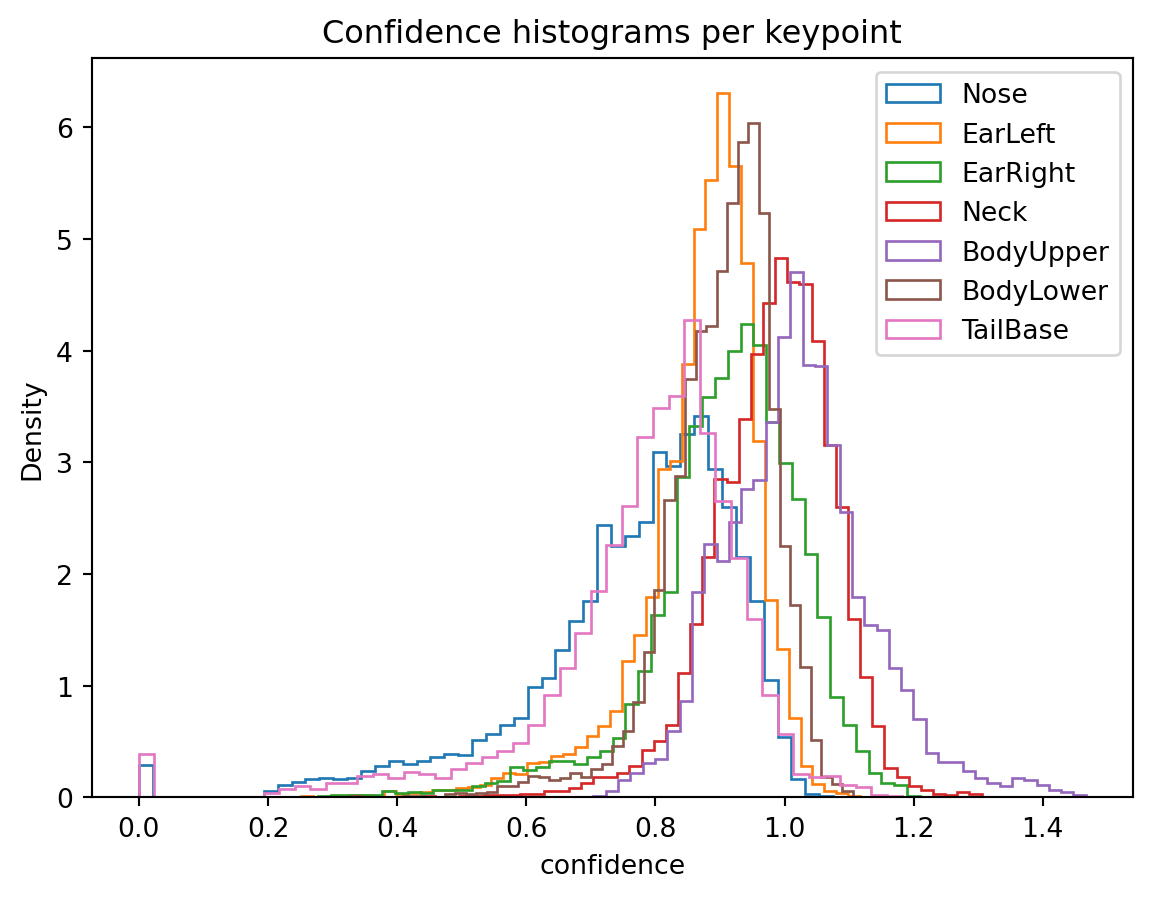

Figure 4.5: Confidence histograms per keypoint

You may also want to export date to structures you may be more familiar with, such as Pandas DataFrames or NumPy arrays.

Export the position data array as a pandas DataFrame:

position_df = poses_ds.position.to_dataframe(
    dim_order=["time", "individuals", "keypoints", "space"]
)
position_df.head()

				position
time	individuals	keypoints	space
0.0	1	Nose	x	796.473145
		Nose	y	843.941101
		EarLeft	x	812.779114
		EarLeft	y	853.027039
		EarRight	x	816.932190

Export data variables or coordinates as numpy arrays:

position_array = poses_ds.position.values
print(f"Position array shape: {position_array.shape}")

time_array = poses_ds.time.values
print(f"Time array shape: {time_array.shape}")

Position array shape: (9000, 2, 7, 2)
Time array shape: (9000,)

For saving datasets to disk, we recommend leveraging xarray’s built-in support for the netCDF file format.

import xarray as xr

# To save a dataset to disk
poses_ds.to_netcdf("poses_ds.nc")

# To load the dataset back from memory
poses_ds = xr.open_dataset("poses_ds.nc")

4.3 Load and explore data

As stated above, our goal with movement is to enable pipelines that are input-agnostic, meaning they are not tied to a specific motion tracking tool or data format. Therefore, movement offers input/output functions that facilitate data flows between various motion tracking frameworks and movement’s own xarray data structure.

Please refer to the Input/Output section of the movement documentation for more details, including a full list of supported formats.

Exercise A

Load the predictions you generated in Chapter 3 into a movement dataset. Alternatively, feel free to work with the CalMS21/mouse044_task1_annotator1.slp file from Dropbox (refer to prerequisites A.4) or any of movement’s sample datasets.
Compute the overall minimum and maximum x,y positions.
Select a narrow time window (e.g. 10 seconds) and plot the x, y positions of a certain keypoint across time.
Plot the centroid trajectory of a given individual across time.

Bonus: Overlay the centroid trajectory (task 4) on top of a frame extracted from the video. You may find inspiration in the “Pupil tracking” example.

Useful resources:

Click to reveal the answers

Loading pose tracks from a file:

from pathlib import Path
from movement.io import load_poses

file_name = "mouse044_task1_annotator1.slp"
file_path = Path.home() / ".movement" / "CalMS21" / file_name

ds = load_poses.from_file(file_path, source_software="SLEAP", fps=30)
ds

Computing the minimum and maximum x,y positions:

for space_coord in ["x", "y"]:
    min_pos = ds.position.sel(space=space_coord).min().values
    max_pos = ds.position.sel(space=space_coord).max().values
    print(f"Min-Max {space_coord} positions: {min_pos:.2f}-{max_pos:.2f}")

Min-Max x positions: 83.79-988.99
Min-Max y positions: 64.72-563.30

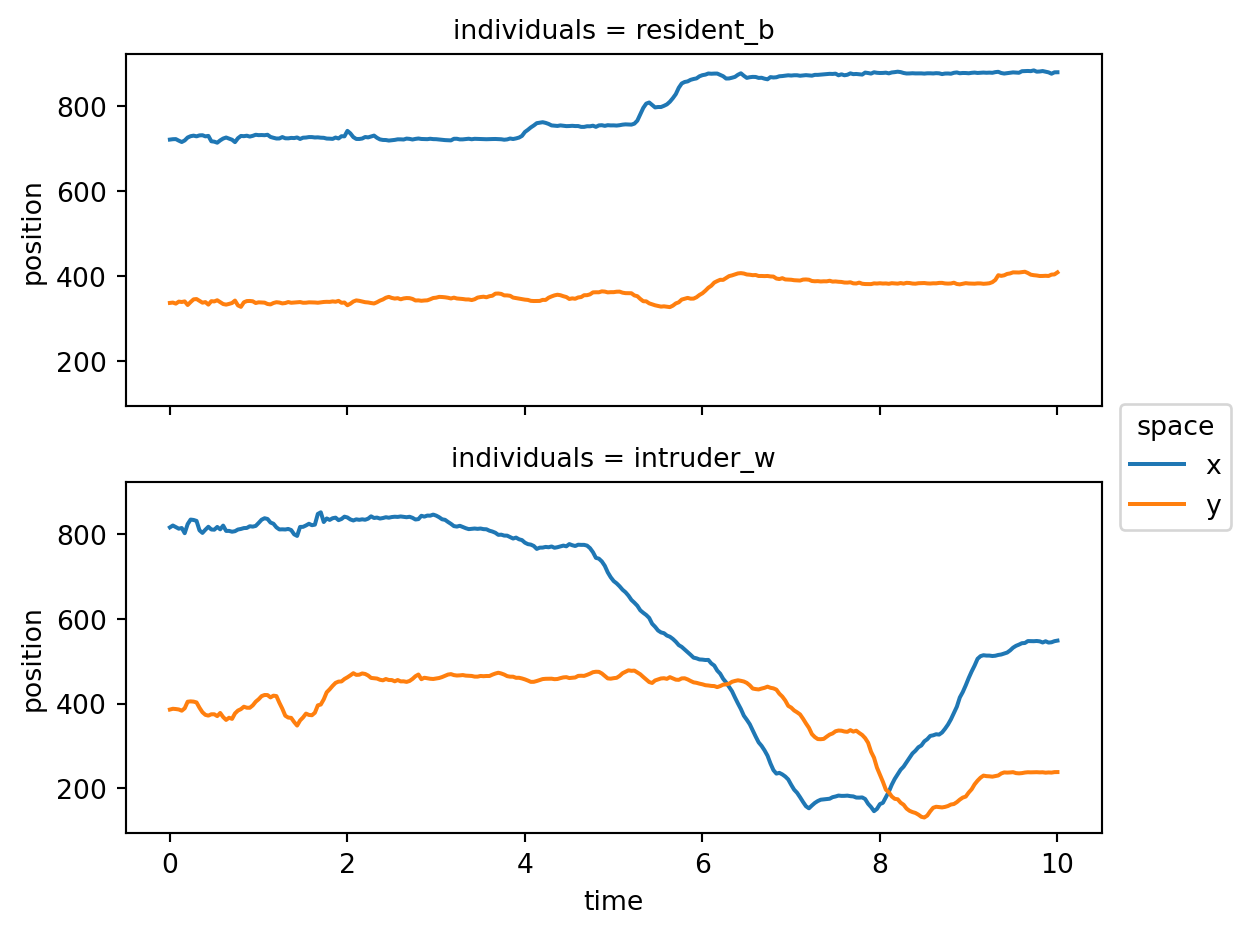

Plotting the x,y positions of a certain keypoint across time, within a narrow time window:

ds.position.sel(keypoints="tail_base", time=slice(0, 10)).plot.line(
    x="time", row="individuals", hue="space", aspect=2, size=2.5
)

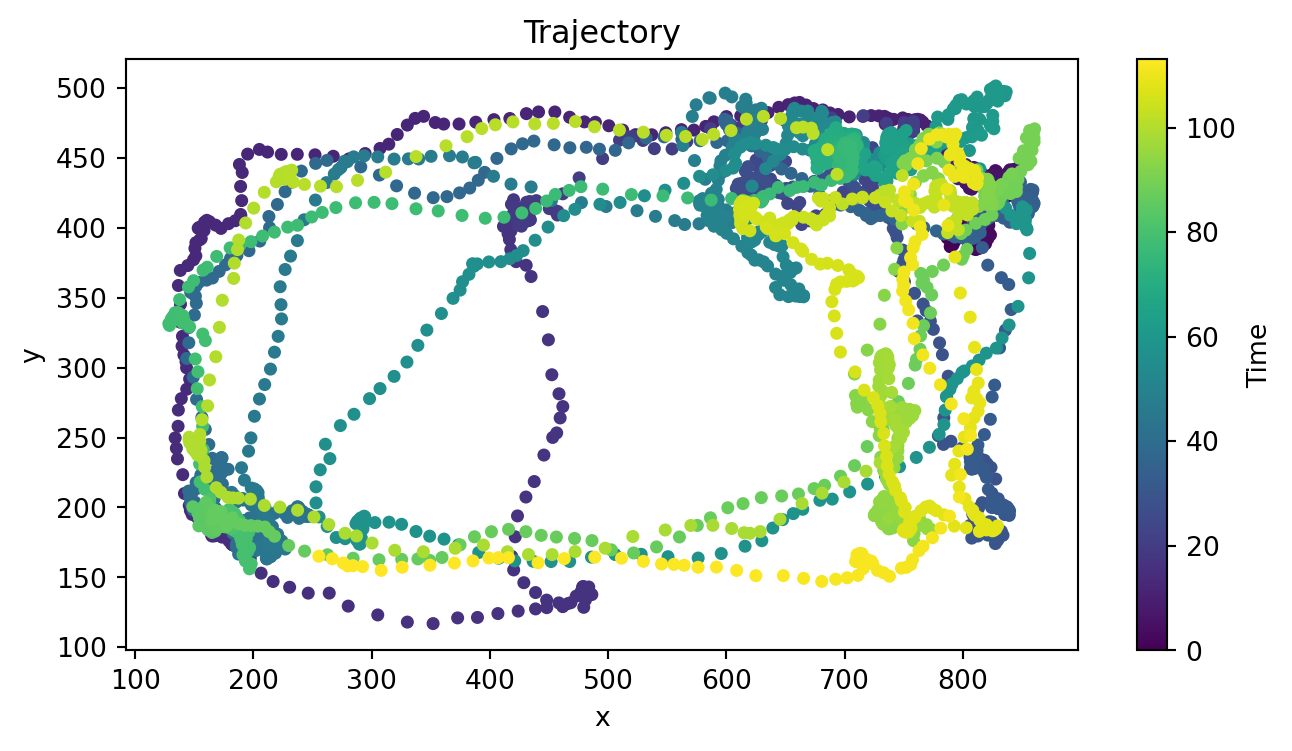

Plotting the centroid trajectory:

from movement.plots import plot_centroid_trajectory

fig, ax = plt.subplots(figsize=(8, 4))
plot_centroid_trajectory(ds.position, individual="resident_b", ax=ax)
plt.show()

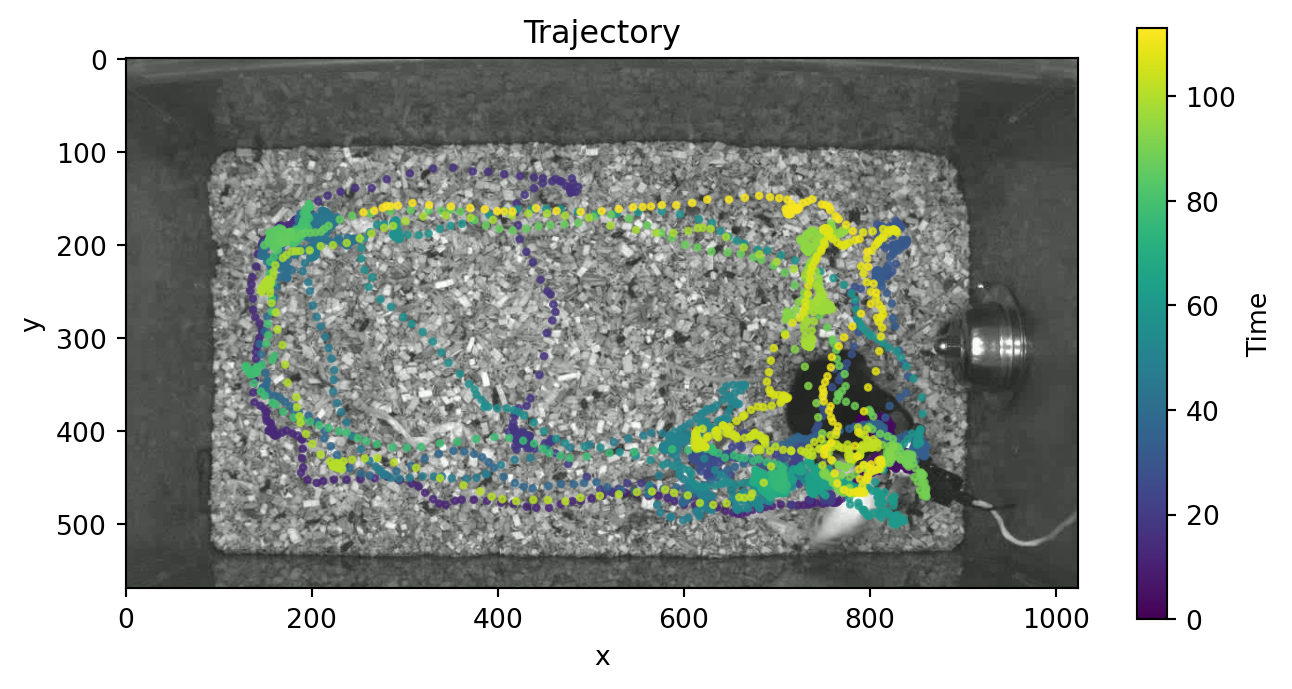

As a bonus, we can also overlay that trajectory on top of a video frame.

import sleap_io as sio


video_path = Path.home() / ".movement" / "CalMS21" / "mouse044_task1_annotator1.mp4"
video = sio.load_video(video_path)

n_frames, height, width, channels = video.shape
print(f"Number of frames: {n_frames}")
print(f"Frame size: {width}x{height}")
print(f"Number of channels: {channels}\n")

# Extract the first frame to use as background
background = video[0]

fig, ax = plt.subplots(figsize=(8, 4))

# Plot the first video frame
ax.imshow(background, cmap="gray")

# Plot the centroid trajectory
plot_centroid_trajectory(
    ds.position, individual="resident_b", ax=ax, alpha=0.75, s=5,
)

plt.show()

Number of frames: 3394
Frame size: 1024x570
Number of channels: 3

4.4 Visualise motion tracks interactively

The movement graphical user interface (GUI), powered by our custom plugin for napari, makes it easy to view and explore motion tracks. Currently, you can use it to visualise 2D movement datasets as points, tracks, and rectangular bounding boxes (if defined) overlaid on video frames.

We’ll first demonstrate how the GUI works by using it to explore the CalMS21 dataset and some of the sample data we can fetch with movement.

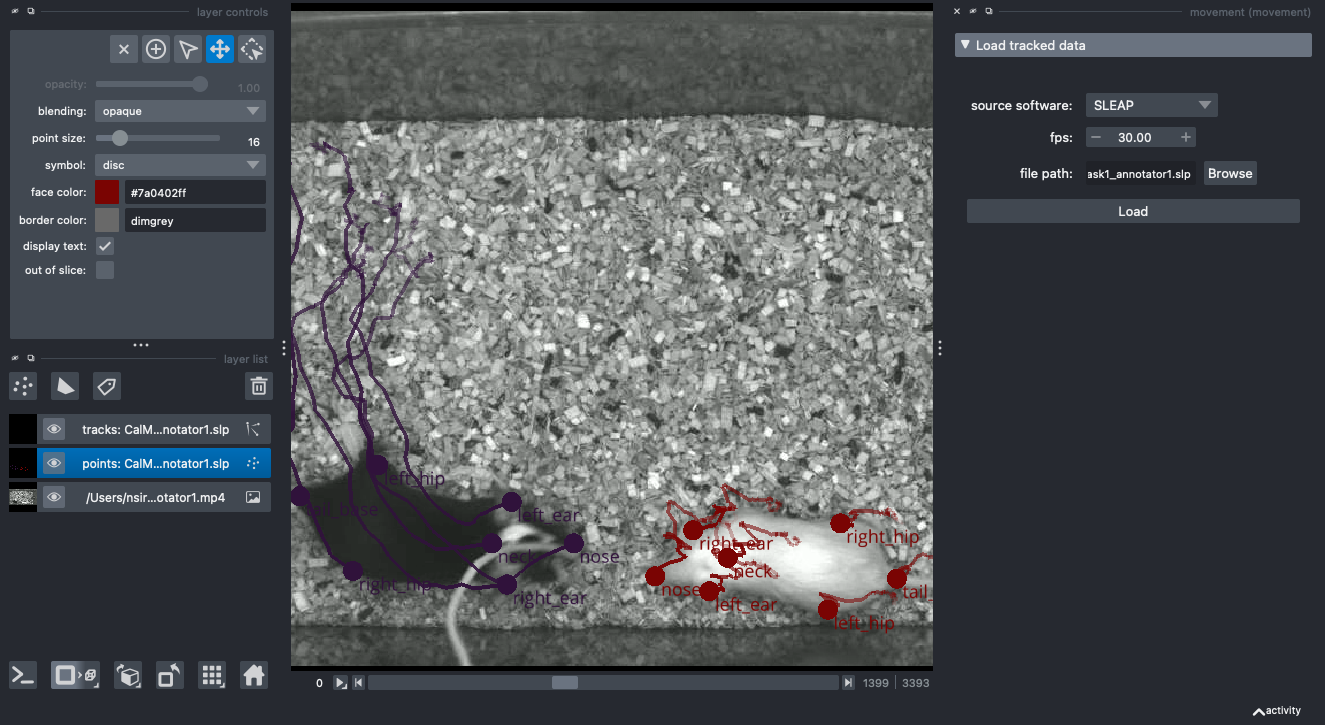

Figure 4.6: Data from the CalMS21 dataset viewed via the `movement` plugin for `napari`

After that you are free to play with the GUI on your own. You may try to explore the predictions you generated in Chapter 3, or any other tracking data you have at hand and is supported by movement.

Consult the GUI user guide in the movement documentation for more details.

Troubleshooting video loading in napari

If you are getting errors when trying to drag-and-drop a video file into napari, run movement info in your terminal and check the output. If you see napari: 0.6.3 (or newer), you’ll need to remove the current conda environment and create a new one following the prerequisites A.3.3. If you had cloned the repository at a prior time, make sure to run git pull to fetch the most up-to-date version of theenvironment.yaml file.

This incompatibility will be patched in a future release of movement.

Discuss

Did you spot any errors in the data you’ve explored?
What kinds of errors do you expect in pose tracks?
What are some common sources of errors?
How can such errors be avoided or corrected?

4.5 Clean motion tracks

In this section, we will walk through the tools movement offers for dealing with errors in motion tracking. These tools are implemented in the movement.filtering module and include functions for:

identifying and removing outliers
interpolating missing data
smoothing trajectories over time

We will go through two notebooks from movement’s example gallery:

To run these examples as interactive Jupyter notebooks, you can go to end of each example and either:

Click the Download Jupyter Notebook button and open the .ipynb file in your code editor of choice (recommended), or
Click the launch binder button and run the notebook in your browser.

Exercise B

For this exercise you may continue working with the dataset you used to solve Exercise A in Section 4.3, or load another one. You should store each intermediate output as a data variable within the same dataset.

Drop position values that are below a certain confidence threshold.
Smooth the data across time using rolling median filter.
Interpolate missing values across time.
Save the dataset, including the processed position data, to a netCDF file.

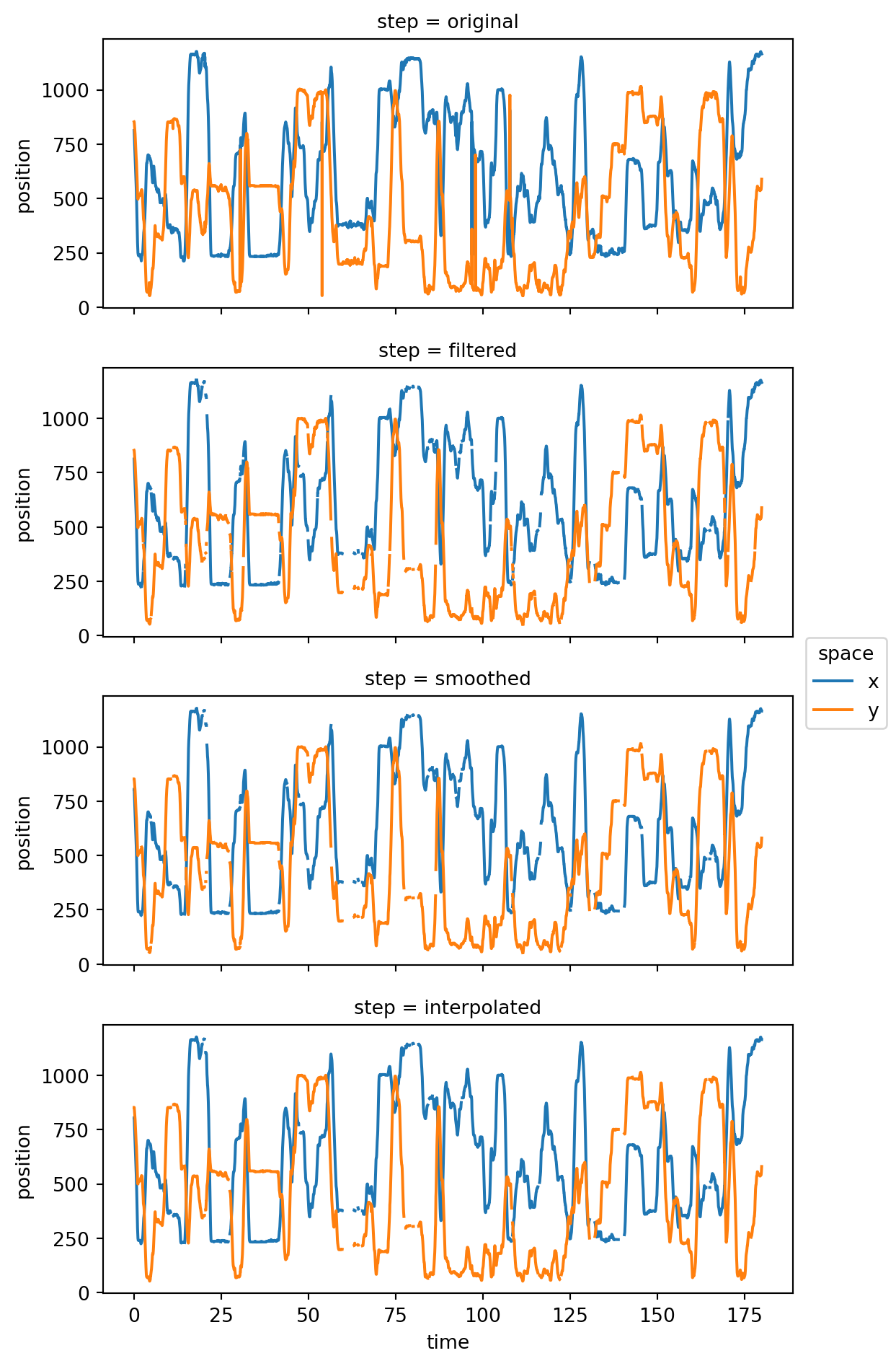

Refer to the filtering module documentation and to the examples we went through above.

Each filtering step involves selecting one or more parameters. We encourage you to experiment with different parameters values and inspect their effects by plotting the data.

Click to reveal the answers

We will work with the same “SLEAP_two-mice_octagon.analysis.h5” dataset we loaded in Section 4.2.1.

ds_oct = sample_data.fetch_dataset("SLEAP_two-mice_octagon.analysis.h5")
ds_oct

Consulting Figure 4.5, we decide on a confidence threshold of 0.8. This decision is always somewhat arbitrary, and confidence scores are not usually comparable across different tracking tools and datasets.

We can now drop the position values that are below the threshold:

from movement.filtering import (
    filter_by_confidence,
    rolling_filter,
    interpolate_over_time,
)

confidence_threshold = 0.8

ds_oct["position_filtered"] = filter_by_confidence(
    ds_oct.position,
    ds_oct.confidence,
    threshold=confidence_threshold,
    print_report=True
)

Missing points (marked as NaN) in input:

keypoints                Nose           EarLeft          EarRight              Neck         BodyUpper         BodyLower          TailBase
individuals
1            107/9000 (1.19%)     9/9000 (0.1%)     9/9000 (0.1%)     9/9000 (0.1%)     9/9000 (0.1%)     9/9000 (0.1%)   44/9000 (0.49%)
2            272/9000 (3.02%)  260/9000 (2.89%)  260/9000 (2.89%)  260/9000 (2.89%)  260/9000 (2.89%)  260/9000 (2.89%)  392/9000 (4.36%)
Missing points (marked as NaN) in output:

keypoints                  Nose             EarLeft            EarRight              Neck         BodyUpper           BodyLower            TailBase
individuals
1            3972/9000 (44.13%)  1441/9000 (16.01%)  1200/9000 (13.33%)  390/9000 (4.33%)     9/9000 (0.1%)    520/9000 (5.78%)  3337/9000 (37.08%)
2            5143/9000 (57.14%)  1826/9000 (20.29%)  1324/9000 (14.71%)  489/9000 (5.43%)  524/9000 (5.82%)  1382/9000 (15.36%)  4899/9000 (54.43%)

Smoothing the data with a rolling median filter:

ds_oct["position_smoothed"] = rolling_filter(
    ds_oct.position_filtered,
    window=5,
    statistic="median",
    min_periods=2,
    print_report=True
)

Missing points (marked as NaN) in input:

keypoints                  Nose             EarLeft            EarRight              Neck         BodyUpper           BodyLower            TailBase
individuals
1            3972/9000 (44.13%)  1441/9000 (16.01%)  1200/9000 (13.33%)  390/9000 (4.33%)     9/9000 (0.1%)    520/9000 (5.78%)  3337/9000 (37.08%)
2            5143/9000 (57.14%)  1826/9000 (20.29%)  1324/9000 (14.71%)  489/9000 (5.43%)  524/9000 (5.82%)  1382/9000 (15.36%)  4899/9000 (54.43%)
Missing points (marked as NaN) in output:

keypoints                  Nose             EarLeft            EarRight              Neck         BodyUpper          BodyLower            TailBase
individuals
1            3583/9000 (39.81%)  1196/9000 (13.29%)  1019/9000 (11.32%)   270/9000 (3.0%)    4/9000 (0.04%)   349/9000 (3.88%)  2821/9000 (31.34%)
2            4741/9000 (52.68%)  1493/9000 (16.59%)   994/9000 (11.04%)  314/9000 (3.49%)  341/9000 (3.79%)  970/9000 (10.78%)  4296/9000 (47.73%)

Interpolating missing values across time:

ds_oct["position_interpolated"] = interpolate_over_time(
    ds_oct.position_smoothed,
    method="linear",
    max_gap=10,
    print_report=True
)

Missing points (marked as NaN) in input:

keypoints                  Nose             EarLeft            EarRight              Neck         BodyUpper          BodyLower            TailBase
individuals
1            3583/9000 (39.81%)  1196/9000 (13.29%)  1019/9000 (11.32%)   270/9000 (3.0%)    4/9000 (0.04%)   349/9000 (3.88%)  2821/9000 (31.34%)
2            4741/9000 (52.68%)  1493/9000 (16.59%)   994/9000 (11.04%)  314/9000 (3.49%)  341/9000 (3.79%)  970/9000 (10.78%)  4296/9000 (47.73%)
Missing points (marked as NaN) in output:

keypoints                  Nose             EarLeft          EarRight             Neck         BodyUpper         BodyLower            TailBase
individuals
1            3394/9000 (37.71%)  1009/9000 (11.21%)  886/9000 (9.84%)  180/9000 (2.0%)     0/9000 (0.0%)  196/9000 (2.18%)  2456/9000 (27.29%)
2             4500/9000 (50.0%)  1263/9000 (14.03%)  750/9000 (8.33%)  162/9000 (1.8%)  205/9000 (2.28%)  670/9000 (7.44%)  3808/9000 (42.31%)

The dataset now contains all intermediate processing steps.

ds_oct

We can even inspect the log of the final position data array:

print(ds_oct.position_interpolated.log)

[
  {
    "operation": "filter_by_confidence",
    "datetime": "2025-08-18 17:13:15.930230",
    "confidence": "<xarray.DataArray 'confidence' (time: 9000, keypoints: 7, individuals: 2)> Size: 504kB\n0.9292 0.8582 0.9183 0.9426 0.9423 1.033 ... 0.8551 0.9173 0.598 0.8343 0.0\nCoordinates: (3)",
    "threshold": "0.8",
    "print_report": "True"
  },
  {
    "operation": "rolling_filter",
    "datetime": "2025-08-18 17:13:15.957585",
    "window": "5",
    "statistic": "'median'",
    "min_periods": "2",
    "print_report": "True"
  },
  {
    "operation": "interpolate_over_time",
    "datetime": "2025-08-18 17:13:16.607978",
    "method": "'linear'",
    "max_gap": "10",
    "print_report": "True"
  }
]

Let’s pick a keypoint and plot its position across time for every processing step. To make the plotting a bit easier, we’ll stack the four position data arrays across a new dimension called step.

position_all_steps = xr.concat(
    [
        ds_oct.position,
        ds_oct.position_filtered,
        ds_oct.position_smoothed,
        ds_oct.position_interpolated
    ],
    dim="step"
).assign_coords(step=["original", "filtered", "smoothed", "interpolated"])

position_all_steps

Let’s plot the position of the EarLeft keypoint across time for every step.

position_all_steps.sel(individuals="1", keypoints="EarLeft").plot.line(
    x="time", row="step", hue="space", aspect=2, size=2.5
)
plt.show()

4.6 Quantify motion

In this section, we will familiarise ourselves with the movement.kinematics module, which provides functions for deriving various useful quantities from motion tracks, such as velocity, acceleration, distances, orientations, and angles.

As in the previous section, we will go through a specific example from movement’s example gallery:

Compute and visualise kinematics

You can run this notebook interactively in the same way as in Section 4.5.

Exercise C

For this exercise you may continue working with the dataset you used to solve Exercise B in Section 4.5. In fact, you can use the fully processed position data as your starting point.

Take the mean position across keypoints (each individual’s centroid).
Compute and plot the centroid speed across time.
Compute the distance travelled by each individual within a certain time window.
Compute the distance between two individuals (or between two keypoints) and plot it across time.

Refer to the kinematics module documentation and to the example we went through above.

Click to reveal the answers

We will continue working with the ds_oct from the previous exercise, using the position_interpolated data variable as our starting point.

Let’s first import the functions we will use:

from movement.kinematics import (
    compute_speed,
    compute_path_length,
    compute_pairwise_distances,
)

To compute the centroid position and speed:

ds_oct["centroid_position"] = ds_oct.position_interpolated.mean(dim="keypoints")
ds_oct["centroid_speed"] = compute_speed(ds_oct.centroid_position)

ds_oct.centroid_speed

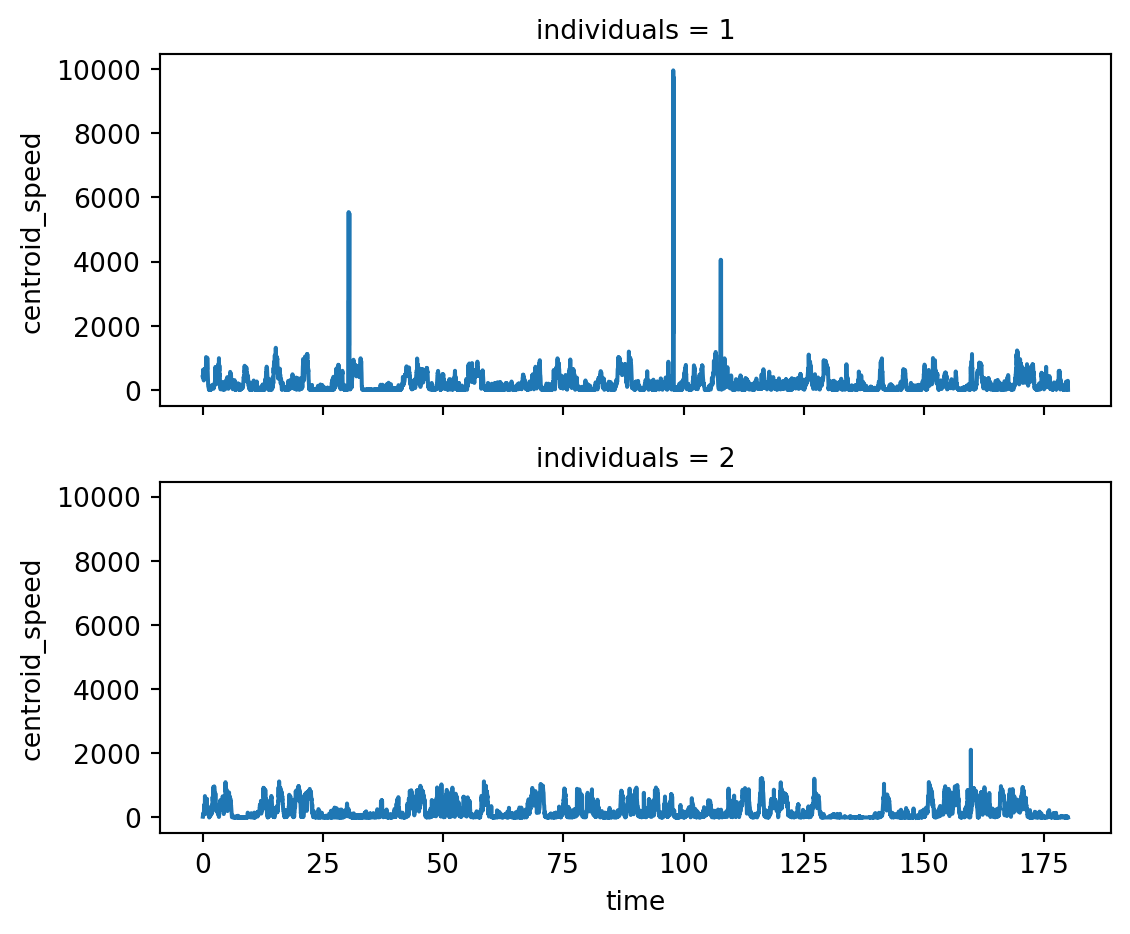

To plot it across time:

ds_oct.centroid_speed.plot.line(x="time", row="individuals", aspect=2, size=2.5)
plt.show()

To compute the distance travelled by each individual within a certain time window:

ds_oct["path_length"] = compute_path_length(
    ds_oct.centroid_position.sel(time=slice(50, 100))
)

ds_oct.path_length

<xarray.DataArray 'path_length' (individuals: 2)> Size: 8B
1.047e+04 1.094e+04
Coordinates: (1)
Attributes: (1)

We will compute the distance between the centroids of the two individuals and plot it across time:

ds_oct["inter_individual_distance"] = compute_pairwise_distances(
    ds_oct.centroid_position,
    dim="individuals",
    pairs={"1": "2"}
)

ds_oct.inter_individual_distance

<xarray.DataArray 'inter_individual_distance' (time: 9000)> Size: 72kB
177.2 172.2 168.7 162.3 159.0 157.3 ... 672.7 674.2 675.6 679.4 682.9 683.0
Coordinates: (1)
Attributes: (1)

To plot the inter-individual distance across time:

ds_oct.inter_individual_distance.plot.line(x="time", aspect=2, size=2.5)
plt.show()

If you wish to learn more about quantifying motion with movement, including things we didn’t cover here, the following example notebooks are good follow-ups:

Compute head direction: a good place to learn about orientations and angles
Pupil tracking: an interesting application of kinematics to analyse mouse eye movements

The following two chapters—Chapter 5 and Chapter 6—constitute case studies in which we apply movement to some real-world datasets. The two case studies represent quite different applications:

Chapter 5: continuous home cage monitoring data tracking mice for months
Chapter 6: collective escape events in a herd of zebras, recorded via a drone

4.7 Join the movement

This chapter does not represent a full list of movement’s current and future capabilities. The package will continue to evolve as it’s being actively developed by a core team of engineers (aka the authors of this book) supported by a growing, global community of contributors.

We are committed to openness and transparency and always welcome feedback and contributions from the community, especially from practicing animal behaviour researchers, to shape the project’s direction.

Visit the movement community page to find about ways to get help and get involved.

Discuss

What do you think of the movement package? What aspects of it could be improved?
What is currently missing? What types of analyses would you like for movement to support?

If you have ideas, tell us about them on Zulip, open an issue on GitHub, or suggest a project for the hackday!
